Conveyor systems

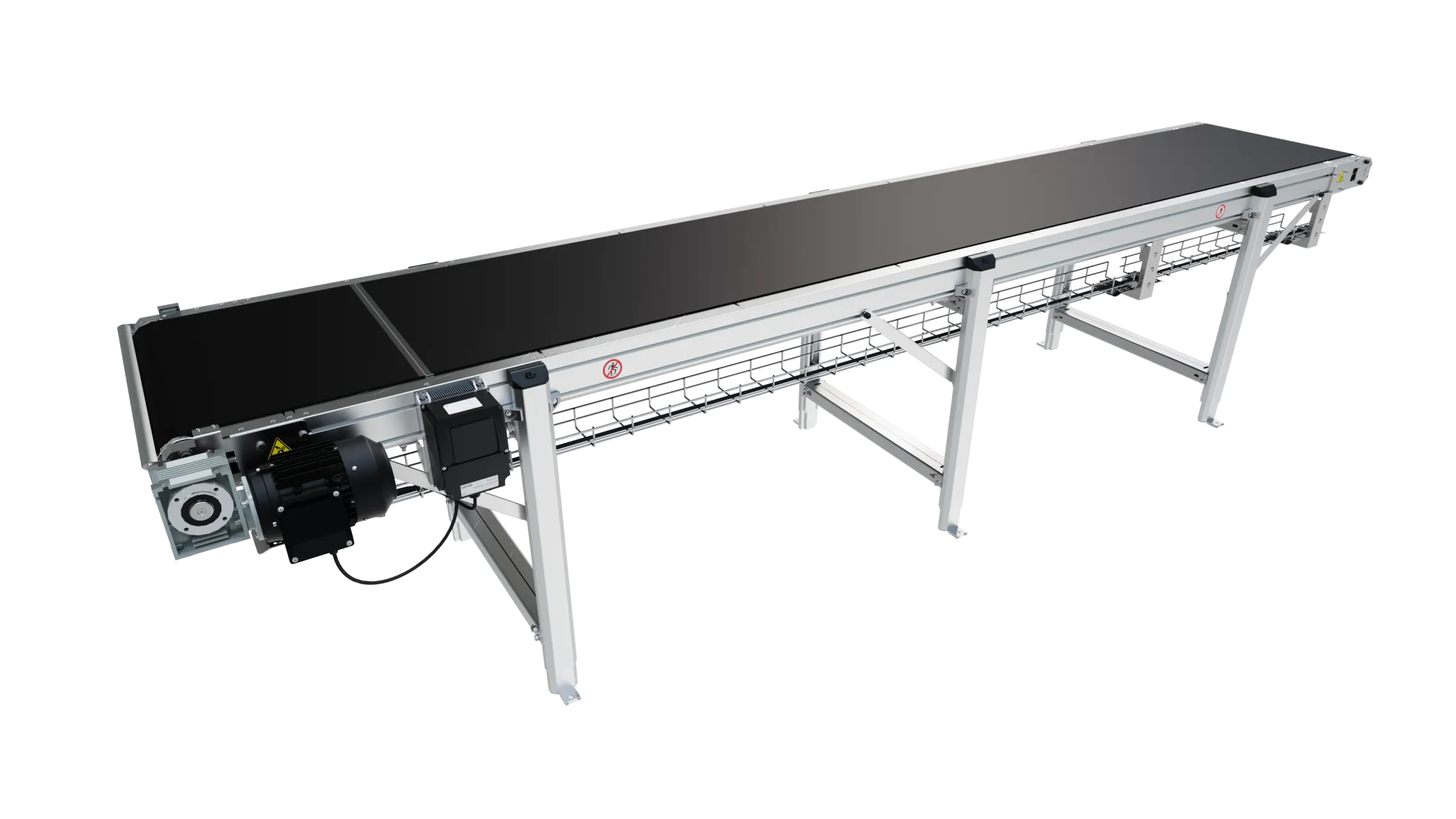

Slimline 2.0 Belt Conveyor

Slimline 2.0 Belt Conveyor is part of our 100% electric and modular conveyor system, designed to create flexible and efficient material flows. With customizable length, width and conveyor belt options, the conveyor can be tailored to different types of goods, operational needs and facility requirements.

Thanks to its modular Plug & Play design, the Belt Conveyor can easily be integrated into both new and existing conveyor systems. This simplifies installation and maintenance while minimizing downtime.

As operations grow or requirements change, the conveyor solution can easily be adapted and expanded. The Belt Conveyor can be combined with other modules in the Slimline 2.0 series to create an integrated and scalable system that evolves alongside your business.

Specification
MODULAR
Plug & Play
MAX CONVEYOR LENGTH
0,5-15 m
MAX CONVEYOR WIDTH
0,2-1,2 m
SPEED
0,5-1,1 m/s
OPERATING TEMPERATURE
5–40 °C
SYSTEM
100% electric
LOADS CAPACITY
150 kg per 15 m of conveyor length
CONVEYOR BELT SURFACE
Customizable friction level
Combinations

Combine with other products

Packaging
e-Seal Packaging machine
Sorting
DWS
Sorting
Sorting unit
References

Customer cases with Slimline 2.0 Belt Conveyor

Reference
Mathem

Built for a stable and efficient material flow

Slimline 2.0 Belt Conveyor is designed to provide a stable and reliable material flow for different types of goods. With a load capacity of up to 150 kg per 15 meters of conveyor length and customizable length and width, the conveyor can be tailored to meet specific operational needs.

The conveyor belt can be customized to suit the characteristics of the goods and the specific application, providing flexibility for different material handling needs. With conveyor lengths ranging from 0.5 to 15 meters and widths from 0.2 to 1.2 meters, the solution can be adapted to both existing and new warehouse layouts.

As part of Slimline 2.0, the Belt Conveyor can easily be combined with other modules to create an integrated and efficient material flow. The modular design also simplifies servicing and maintenance, while allowing the system to expand as operational needs evolve.

Control in every zone

Slimline 2.0 Belt Conveyors are built with individual zones that are activated only when needed. This means the system does not need to run continuously, helping to reduce energy consumption, minimize wear and tear, and create a quieter working environment.

The new generation is also designed for easier monitoring and troubleshooting. Built-in sensors, diagnostic capabilities and the ability to disconnect power to individual modules make it easier to identify and resolve potential issues.

Combined with the modular design of Slimline 2.0, these features create a Belt Conveyor designed for efficient operation, easy maintenance and high availability over time.

Contact

Curious to discover how a Slimline 2.0 Belt Conveyor can take your logistics to the next level? Contact Jeff for a no-obligation consultation!

Sales Manager

Jeff Ström

Products

View more products

Get even more out of your logistics flow. Combine the Slimline 2.0 Belt Conveyor with other products in the series to create a complete solution tailored to your needs.

Products
End-to-End Solutions

Belt Conveyors as part of scalable end-to-end solutions

A Belt Conveyor from e-motions can be used both as a standalone unit and as part of a complete automation system. With Slimline 2.0, the conveyor solution can be combined with sorting, packing and order picking solutions to create an efficient and integrated logistics flow.

The modular design makes it easy to tailor the solution to your operational needs and expand it as requirements change. We support you every step of the way, from design and engineering to installation and commissioning of our Belt Conveyors.

Benefits

Benefits of Slimline 2.0 Belt Conveyors

  • Scalable design - modular construction that makes it easy to expand and adapt the system as operational needs change.

  • 100% electric - Slimline 2.0 operates entirely without compressed air, providing a simpler and more cost-effective solution.

  • Plug & Play - ready-to-install modules simplify installation, maintenance and future modifications.

  • Minimal downtime - individual modules can be replaced in five minutes or less in the event of a fault.

  • Easy integration - connect your Belt Conveyor with other Slimline 2.0 products to create a complete and integrated automation system.

Logistics needs

Belt Conveyor for flexible logistics flows

A Slimline 2.0 Belt Conveyor provides a flexible foundation for automated logistics flows. The system handles different types of goods and can easily be adapted as volumes, material flows or operational needs change.

We design, manufacture and install Belt Conveyors built to grow alongside your business, from individual conveyor sections to larger, integrated automation solutions.

FAQ – Slimline 2.0 Belt Conveyor & Belt Conveyors

We offer modular Belt Conveyors as part of our in-house developed Slimline 2.0 series. The system is 100% electric, scalable and designed to integrate seamlessly with other products in the Slimline 2.0 range.

A Belt Conveyor is used to automatically transport parcels and goods between different areas of a warehouse or production facility. This reduces the need for manual handling and creates a more efficient and integrated logistics flow.

Yes, our Belt Conveyors can easily be integrated with other conveyor systems, sorting solutions, packing machines and control systems such as WMS/ERP.

Slimline 2.0 Belt Conveyor has a load capacity of up to 150 kg per 15 meters of conveyor length. The conveyor is available in lengths ranging from 0.5 to 15 meters and widths from 0.2 to 1.2 meters, allowing the solution to be tailored to different types of goods and operational needs.

Yes. Our Belt Conveyors can be combined with other automation solutions to create complete end-to-end logistics flows, from order picking and internal transport to sorting and packing.
